Digital print decor paper – a revolutionary lamination paper

By our water-based 12 color digital printing ,any photos, designs of fantasy patterns,wood grains,stones provided by clients could be printed on base paper.Printed decor paper would be impregnated with melamine and then laminated with other paper onto substrate to produce HPL sheet, melamine board and solid grade board.

Different from screen printing ,digital print restore the fancy patterns of superior clarity,consistent color intergrity to meet increasingly personalized decorative needs.

Our custom printing decorative paper usually ranges from 80-100 gsm in weight and 1220-1680 mm in width without length limitation,which makes itself suitable in small and flexible order quantity.

Besidses decor paper printed, base decor paper could be request as well,for laminate factory.

digital print paper

Digital printing

By digital printing ,we transfer high resolution graphic information directly from the printer to decor paper

· Rollers plays an vital role in transferring ink onto decor paper in rotogravure(screen printing process),which may result in poor distribution of ink,such as white dots,color aberration.While digital printing allow deep places,grooves and open pores can be colored as its contact-less between printer and decor, which render overall color consistency

· A higher resolution available with intense color of expanded gamut,which delivers superior clarity without fading out for more than 10 years.

· Large pre-printing work are necessary in screen printing ,including rollers making ,installation and certain amount of paper stock. By digital printing, the decor can be changed anytime and anywhere required ,which eliminates make-ready time and accelerate leading time successfully.

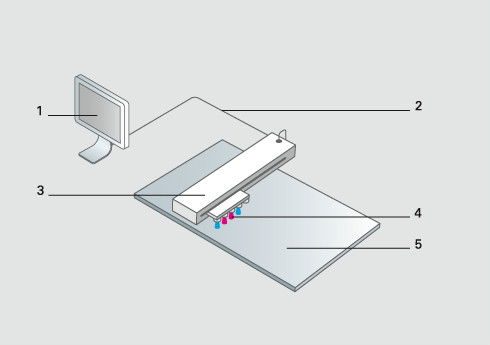

digital print technology

1 PC 2 Data transfer 3 Printing unit 4 Ink transfer 5 Printing substrate

Screen printing

Rotogravure printing(scree printing) is regarded as the most used printing process in decor printing.Decor papers is printed on rotogravure presses using several stages of engraved cylinders, each carrying part of the design structure and color.

· Rotogravure presses run high speeds and skilled staffs to ensure each print stage perfectly in register.Every roll of printed paper need to match exactly the color and balance of the original design

· The decors usually are printed in 2 to 5 consecutive steps with different patterns.After each color application, the paper has to be dried before the next color can be applied.

traditional rotogravure print

1 Back pressure cylinder, 2 Doctor blade, 3 Printing cylinder, 4 Ink, 5 Printing substrate

Why choose digital print decor paper?

·water-based ink guarantees decor paper to be high resolution with absorbing authentic pigments and fast ink drying process

·easy for react with melamine to result in high internal bond strength and good adhesion in lamination

·high resistance to UV rays and resistant to high temperature.Color would not be dull or fade out up to 20 years

·we choose recyclable materials and formaldehyde-free with nearly zero TVOC emission.

·exact order quantities to minimize the cost of stock

·custom printing decor can be made into HPL,MDF,particle board, and not easy to chip down

·one-off printing releases multiple printing times and ink mixing work,like gravure.With digital printing,all is done by computer right on paper

“Some tips for a fantasy artwork”

·File type
Photo/Design/Logo

·File format
AI/CDR/CMX/DWG/DXF/EPS/EMF/PSD/JPG/PNG

·Resolution requirement
Minimum 150-200 dpi(if same size as original )
Recommend 300 dpi (if needed to scale 4 times of original)
Please contact us dor detailed project

·Color mode
Only CMYK. RGB is not recommended

Note:

a)Printing tolerance would be less than 0.02″

b)Each panel would be produced with 0.5″ all-round overfill and cutting mark to ensure final accuracy accuracy.The line may not be completely parallel with edge

c)Murals need images to be split into individual sheets with a reference guide (PDF file ) showing the entire image and sheet breakdown

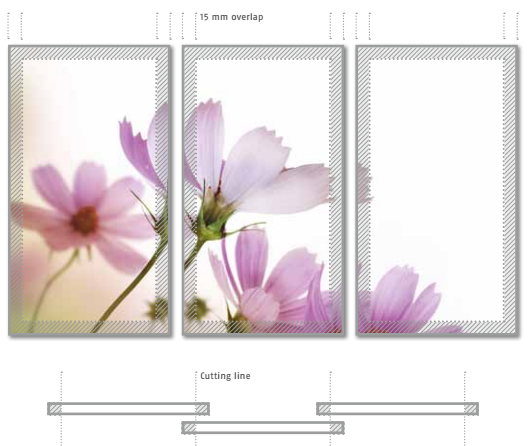

d) A cutting plan is needed if a large mural is divided between several boards. A 0.5″ overlap is necessary with the cutting lines to allow consistent montage.Please check as following

e)Standard corner radius is 1 / 16″ while any radius is available.

f)Insert and hole placement should be indicated on separate files

digital print overlap

1)Can white color printed on decor paper ?
No,as digital inks are semi-transparent,they require a white or light colored background. The digital printer does not print white ink. It relies on the base paper for any white in artwork

2)Are solid color available in digital print ?
Unfortunately, We do not use the digital printer to make solid colors. Due to the printing and production process solid colors can look uneven and blotchy. Solid colors should be a paper match

3)Are woodgrain color available in digital print ?
Yes,some specific woodgrain color could be customized with digital printing.Roller setting-up  time could be saved in large degree

4) How to laminate decor paper?
Decor paper would be impregnated with melamine and then laminated on various substrates.

5) How to order samples?
·sample could be requested for free with sizes no smaller than 10″*20″(25cm*25cm)
·Sample lead time would range from 5-7 days according to specific project
·Sample would be rolled and sealed to keep it moisture-free condition in delivery

Get interested in digital print decor?
